Creating Sloped or Slanted Walls in Revit
Sloped walls, and how to make them is the topic of today's post. Most people probably don't think about this until they need to make one for the first time. This post will hopefully help those who are in that situation and searching the internet for help!
If you have experience doing this and have any additional tips to share, please comment below.
There are two main ways to create a sloped wall in Revit. And neither of them are a simple built-in parameter associated with a wall. Columns used to be like that and then they got a parameter. Let's hope the same happens for walls someday! We know Autodesk is looking at adding it as this Revit Idea (600+ votes) has the feature elevated to "Under Consideration" and it is also on the Revit Roadmap.
Here are the steps:
Create an in-place family, selecting the Wall category.
Next...
If you have experience doing this and have any additional tips to share, please comment below.
There are two main ways to create a sloped wall in Revit. And neither of them are a simple built-in parameter associated with a wall. Columns used to be like that and then they got a parameter. Let's hope the same happens for walls someday! We know Autodesk is looking at adding it as this Revit Idea (600+ votes) has the feature elevated to "Under Consideration" and it is also on the Revit Roadmap.
Model In-Place
Model In-Place is the first option with may limitations. Using the in-place method we can create sloped or complex geometric elements which represent walls and will work for visibility control and filters. However, they do not clean up well with other walls, and they do not look like other walls in section.Here are the steps:
Create an in-place family, selecting the Wall category.
Next...
Friday, December 14, 2018
Autodesk Webinar on Site Collaboration with Civil 3D and Revit 2019.1
If you work on building that come into contact with the earth you may want to check out this webinar by Harlan Brumm and Tim Yarris, Product Managers at Autodesk. They do a live demo of the new workflow that allows a Revit project to link a Civil 3D model via new features in 2019.1 (Civil 3D and Revit,) the Autodesk Desktop Connector and the BIM 360 cloud.
Additionally...
Additionally...
Thursday, December 13, 2018
Dunwoody Architecture - Thesis Final Part 1
Yesterday I had the opportunity to be a guest juror for the end-of-semester review of the Dunwoody Architecture student's final thesis projects. In this post I will share the highlights of that experience.
But, first I want to point out that Dunwoody is a first-of-its-kind school of architecture, whose model will open the doors to a career in architecture for a lot more people. The institution has its 100-year old roots in 2-year technical programs, which includes architectural technology. Until now, any student who invested in a two year degree and then wanted to go on to become an architect would have to throw away that two years of training... meaning those credits almost never transfer to a university. FYI: I only mean "throw away" in the context of credits transferring... all academic engagement is beneficial in some way to an individual.
Dunwood introduced the nation's first 2+3 architecture program that takes their two year degree (or any two year arch tech degree, hint hint) where a graduate can sit for the Architect Registration Exam (ARE) in any State in the USA. The program is in the final stages of it accreditation candidacy. The first group of students just graduated this year!
Now, back to the topic at hand...
But, first I want to point out that Dunwoody is a first-of-its-kind school of architecture, whose model will open the doors to a career in architecture for a lot more people. The institution has its 100-year old roots in 2-year technical programs, which includes architectural technology. Until now, any student who invested in a two year degree and then wanted to go on to become an architect would have to throw away that two years of training... meaning those credits almost never transfer to a university. FYI: I only mean "throw away" in the context of credits transferring... all academic engagement is beneficial in some way to an individual.
Dunwood introduced the nation's first 2+3 architecture program that takes their two year degree (or any two year arch tech degree, hint hint) where a graduate can sit for the Architect Registration Exam (ARE) in any State in the USA. The program is in the final stages of it accreditation candidacy. The first group of students just graduated this year!
Now, back to the topic at hand...
Wednesday, December 12, 2018
Existing Materials - Creating a Custom Seamless Texture
Today's post: A quick and dirty example of one workflow for representing existing materials in an architectural visualization. In this example I took a photo of the concrete road in front of our office.
Read on to learn how to turn this image into a seamless texture which can be used in Revit and Enscape...
Read on to learn how to turn this image into a seamless texture which can be used in Revit and Enscape...
Tuesday, December 11, 2018
Monday, December 10, 2018
Past Projects: UMD Weber Music Hall - Designed by César Pelli
I thought it would be fun to share past projects now and then on this blog, so here is my second installment...
Project: University of Minnesota - Duluth Weber Music Hall
While working on this project I was at a firm called SJA Architects, which is now part of
TKDA - see their project highlights page here. An exciting aspect of this project was it having been designed by the world famous architect César Pelli from Pelli Clark Pelli Architects in New Haven, CT USA. Pelli has designed many architectural wonders including...
Project: University of Minnesota - Duluth Weber Music Hall
While working on this project I was at a firm called SJA Architects, which is now part of
TKDA - see their project highlights page here. An exciting aspect of this project was it having been designed by the world famous architect César Pelli from Pelli Clark Pelli Architects in New Haven, CT USA. Pelli has designed many architectural wonders including...
Friday, December 7, 2018
Enscape Blog Post: HOW TO REALITY CHECK YOUR PROJECT
Today I have another Enscape blog post installment to share with you... this one is titled "How to Reality Check your Project". I hope you like it!
Link to Enscape blog post: HOW TO REALITY CHECK YOUR PROJECT
A few highlights and images from the post below...
Link to Enscape blog post: HOW TO REALITY CHECK YOUR PROJECT
A few highlights and images from the post below...
Thursday, December 6, 2018
ROAST Webinar Today
If you have any interest in post occupancy evaluations (POE) then be sure to check out this webinar by Kieran Timberlake on their new web-based product; ROAST.
Webinar highlights:

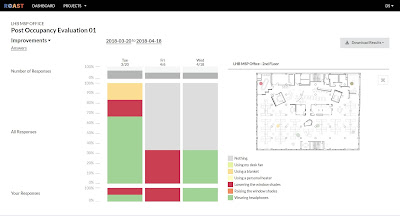

The iamge below shows one of the reports from a POE we did here at LHB during the beta...
My previous related posts:
For BIM Chapters updates, follow @DanStine_MN on Twitter or connect on LinkedIn
Webinar highlights:
"Generating useful data from occupant comfort surveys doesn't happen by accident. Join the Roast team today for our webinar sharing the best practices that will ensure your surveys generate the information you need. The webinar will cover surveys for research, POE, and facilities management."Register here: https://lnkd.in/ecnpM3X
The iamge below shows one of the reports from a POE we did here at LHB during the beta...
My previous related posts:
For BIM Chapters updates, follow @DanStine_MN on Twitter or connect on LinkedIn
Tuesday, December 4, 2018
Revit Challenge: Demo Hole in Existing Floor
Need to demolish a portion of existing floor in Revit? It is not as easy as it should be. The result should be something like adding a new door in an existing wall; in existing views there is no hole in the wall, or any sign of the area to be removed. It should look, existing.
This post will quickly cover the various options one might try. But none of them are perfect. I hope a few readers will comment on what they do...
The three main ways of adding a hole in an otherwise monolithic existing floor is:
Let talk about them...
This post will quickly cover the various options one might try. But none of them are perfect. I hope a few readers will comment on what they do...
The three main ways of adding a hole in an otherwise monolithic existing floor is:
- Edit boundary
- Shaft element
- Void family
Let talk about them...
Monday, December 3, 2018
Resetting A Default Instance Parameter in Revit
When placing a family in Revit, there is something everyone should be away of when it comes to its instance parameters. They can be edited during placement or after. When I say "during placement" I mean you edit the value in the Properties Pallet prior to placing the element in the model, as will be shown more clearly below. If you edit the value after placement, there is no effect on future placements... but, that is not the case when editing values during placement.
Read on to learn more...
This sample window family has an Default Sill Height as a type parameter. Other families just have a 'default' value for any instance parameter. What I am about to show applies to both.
This first window is placed without changing anything. The sill height is 3'-0".
Then...
Read on to learn more...
This sample window family has an Default Sill Height as a type parameter. Other families just have a 'default' value for any instance parameter. What I am about to show applies to both.
This first window is placed without changing anything. The sill height is 3'-0".
Then...
